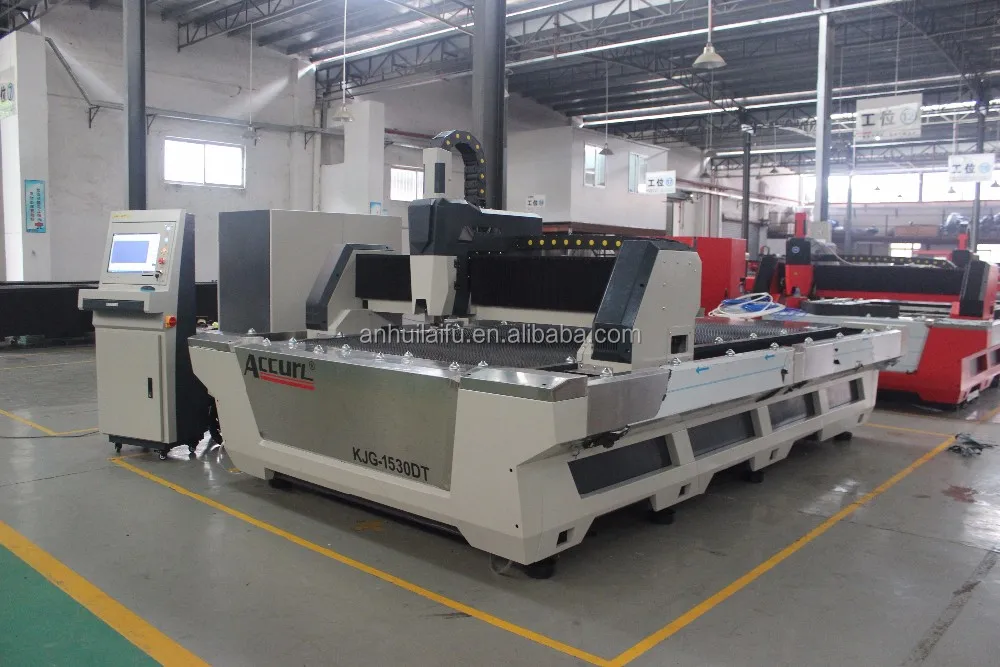

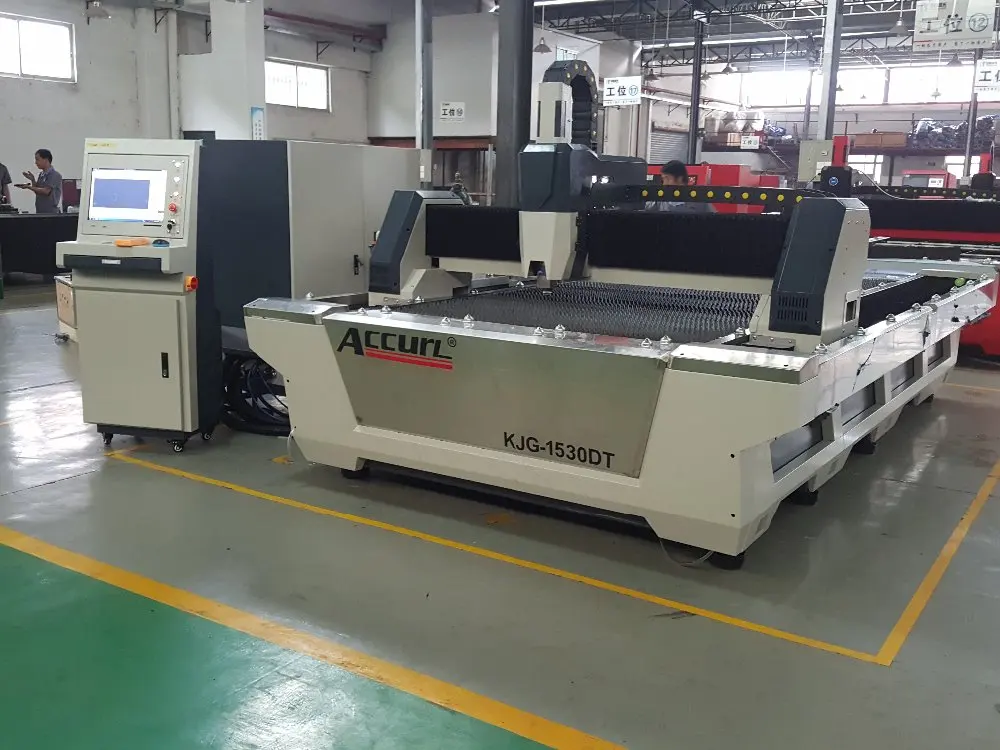

3000w 4000w full closed pallet changer CNC fiber laser cutting machine for metal plate

FOB Reference Price:Get Latest Price
$94,500.00 - $125,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
KJG-150300DT with 3000W
Power(W):
3000
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crytal
Laser Type:
Fiber Laser
Cutting Area:
1500*3000mm
Cutting Speed:
72m/min
Graphic Format Supported:
AI, DXF, DST, DWG, LAS, DXP
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
40mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling

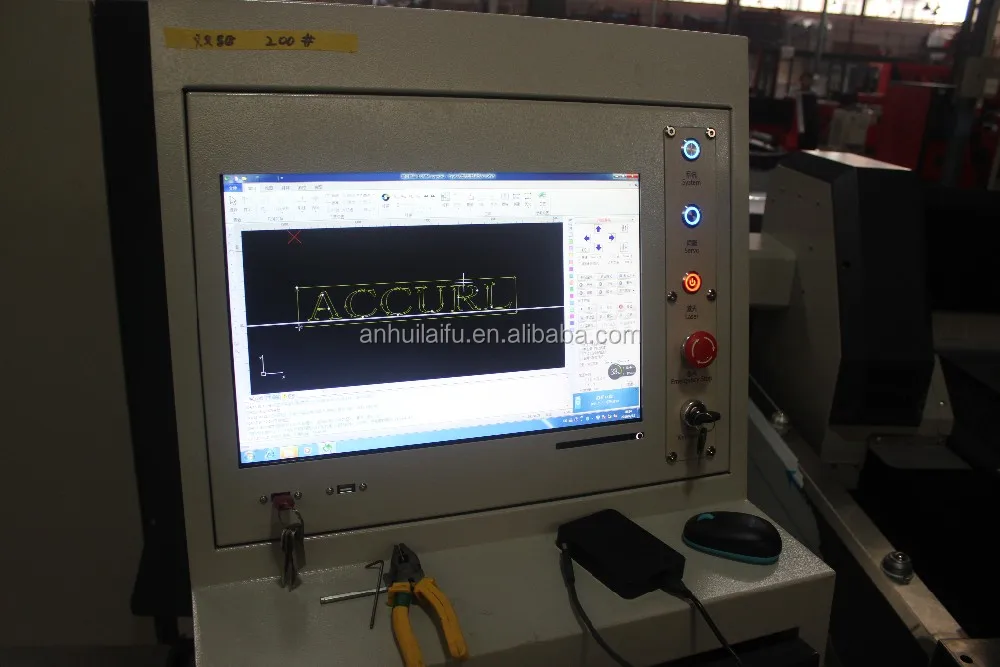

Control Software:
cypcut controller
Place of Origin:
Anhui, China
Brand Name:
ACCURL
Certification:
CE, ISO, SGS, UL
Laser Source Brand:
IPG
Key Selling Points:
High-accuracy
Warranty:
2 years
After-sales Service Provided:
Online support
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use
Model Number:
KJG-1530DT-3000W
Laser type:
USA IPG Fiber YLS-3000w
working range:
1500x3000mm
Linear guide:
Taiwan HIWIN
Reduction Gears:
French MOTOREDUCER
Transmission:
Taiwan YYC gear and rack

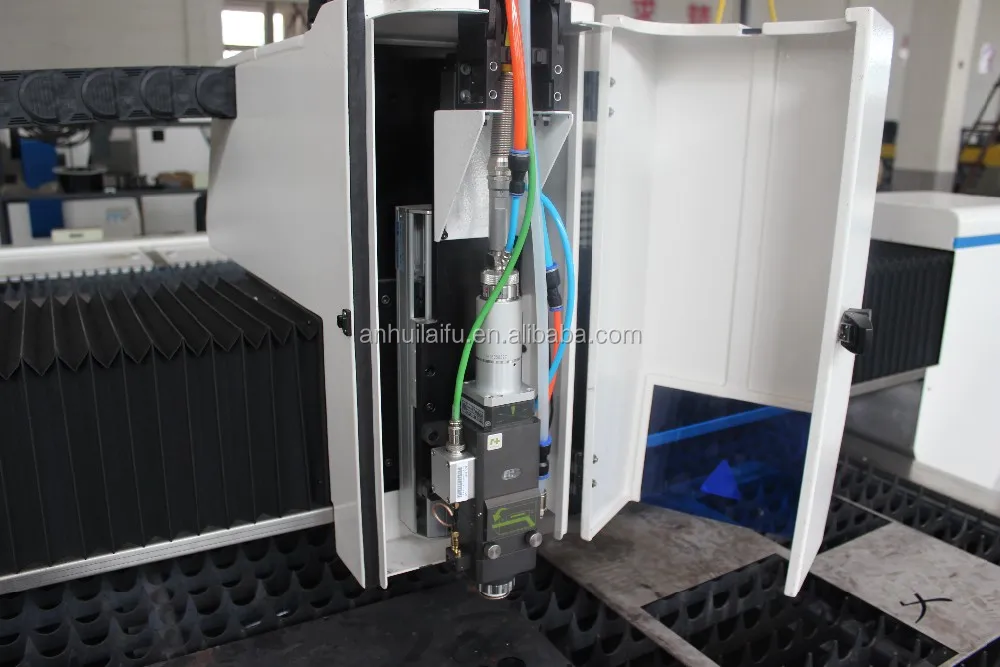

Laser head:
Swiss Raytools auto-following
Table-driven system:
Japanese Yaskawa Servo Motor & Driving System

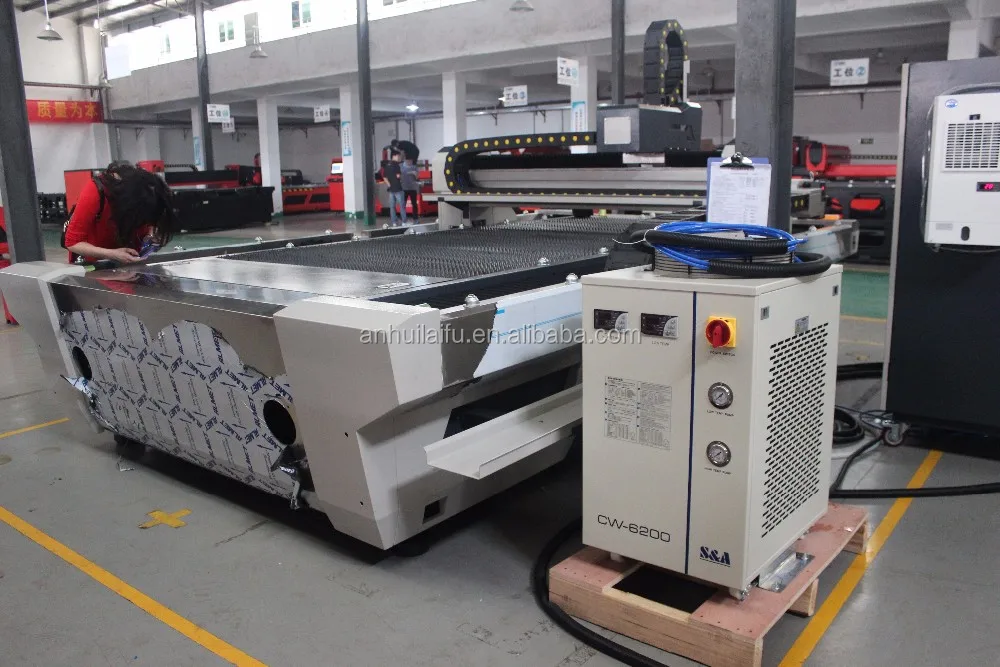

Chiller:
S & A for laser source and cutting head
Total Power consumption:
Accurl Laser Professional Laser Cutting Software
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden packaging for Laser Cutting Machine
Port
ShangHai Port
Product Description

Product Application

The Accurl@ Fiber Lasers bring you a cost effective, low-maintenance, low operating cost,environmentally friendly solution to your organization. We deliver a machine that providesquality cutting and tolerances with small productivity loss between jobs, equating to higher returnon investments. Our fiber laser cutting machines are developed and sold based on these criteria.


• Manufactured by people who use their own machines.
• The resonator comes with a 100,000 hour warranty from the manufacturer (IPG)
• Higher cutting speeds possible
• Dual interchangeable tables allow for faster loading and unloading, reducing downtime
• Laser wavelength is one-tenth of a CO2 laser
• Reduction in cutting variables or tribal knowledge
• Fiber Laser is extremely efficient, equates to very low power consumption
• Low cost of operation, energy cost reduced, no laser gases requied to produce beam
• High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)

• Laser beam transmitted through a fiber optic.cable rather than with mirrors and channel tubing resulting in negligible power loss.

• Created and tested in a 100,000 sq ft Research and Development facility operating 9 metal cutting fiber Lasers, cutting 24/7.

Main Features

•The ACCURL@ Fiber Lasers bring a cost eᴀective, low-maintenance, low operating cost and environ-mentally friendly solution to your organization. Our ἀber laser machines provide quality cutting and tolerances with minimal productivity loss between jobs, equating to a higher re turn on investment.
• Acceleration speed: 19,6 m/s2 (2G).
• Maximum simultaneous positioning speed: 160m/min.
• Precision: + - 0.05 mm.
• Energy efficiency: greatly reduced power consumption.
• Excellent cutting quality for fine thic kness and medium thickness sheet metals.
• IPG Resonator. Power output from 1 kw to 6 kw .

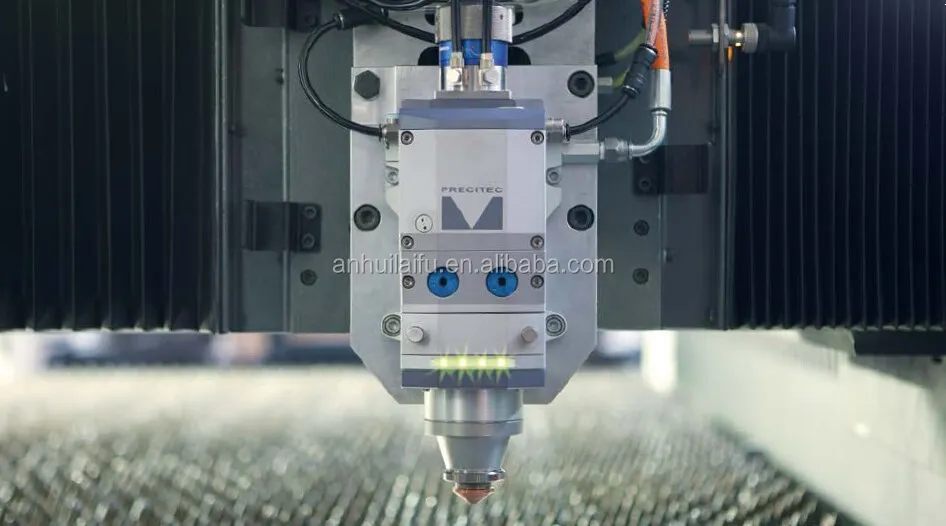

• Precitec light cutter cutting head with po wer output up to 2kw.
• Precitec HP cutting head for po wer output of more than 2kw.
• Fully enclosed and cabinned to ensur e máximum operator protection.
• Effective high to low pressure gas exchange system.
• Capacitative Sensor, high pressure cutting head.
• TCI Cutting parameter tables.
• Pre-cut film protector.
• Automatic mechanized Nesting power output control function (edges, start-ups).
• Automatic time and unit cost calculation function.
• Network connection from external.
• Automatic table exchanger (included in series models).
• Smoke extraction (included in series models).
• 3 point reference sensor (sheet metal rotation detector).
• Piercing Sensor.
• Collection of work pieces and trimmings.
• Dual proportional valve control system for different gas pressures and special system for high pressure cutting.

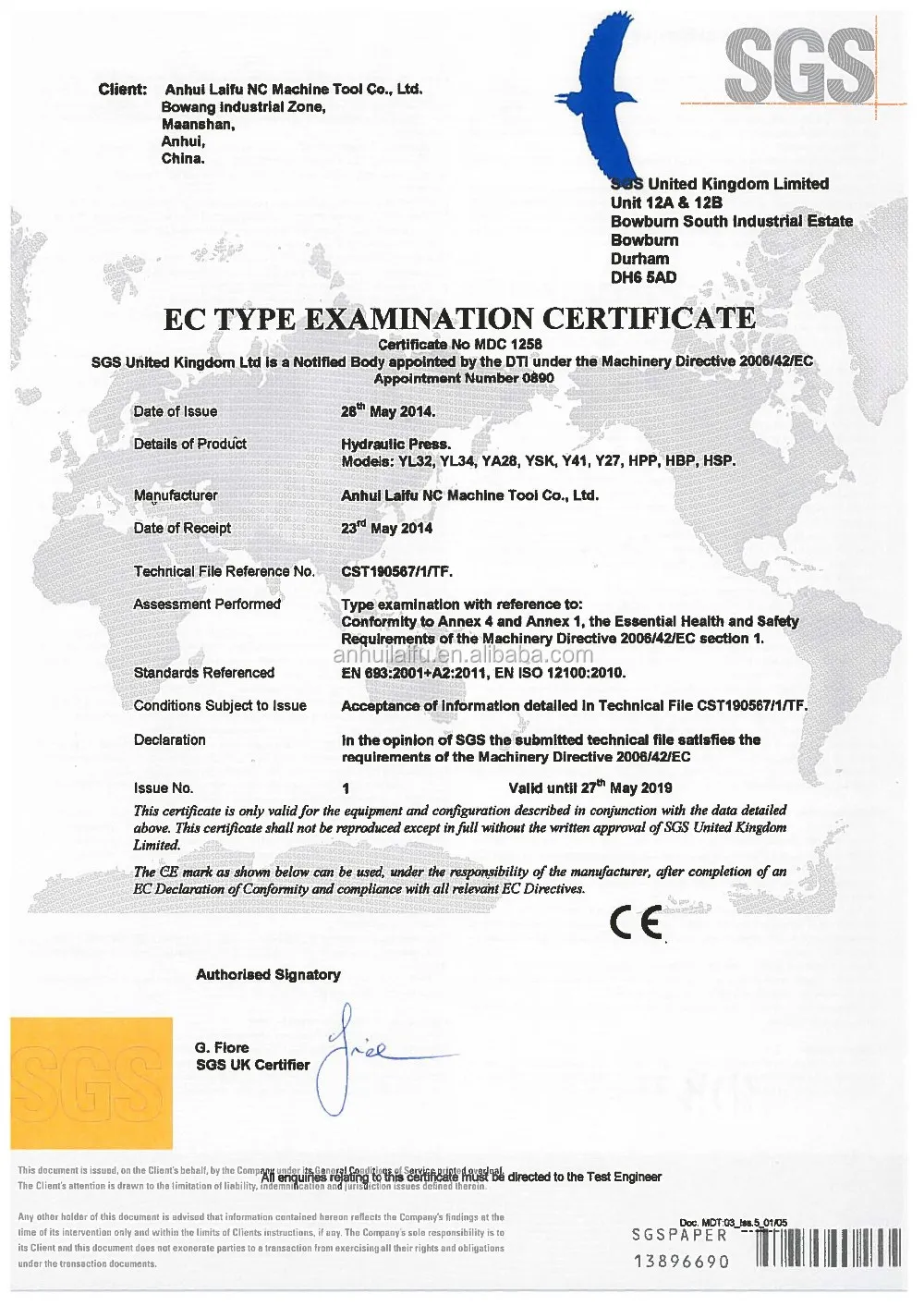

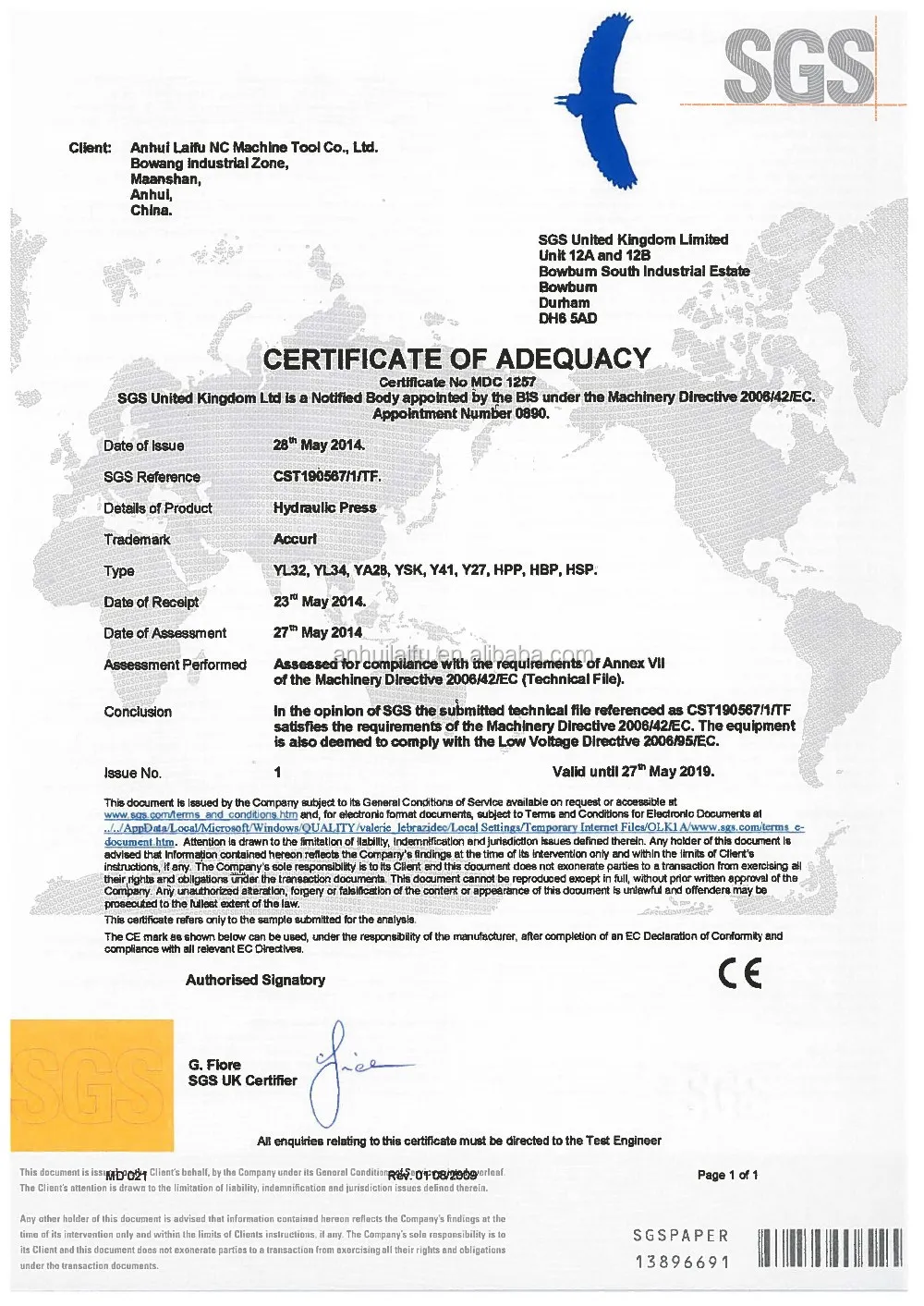

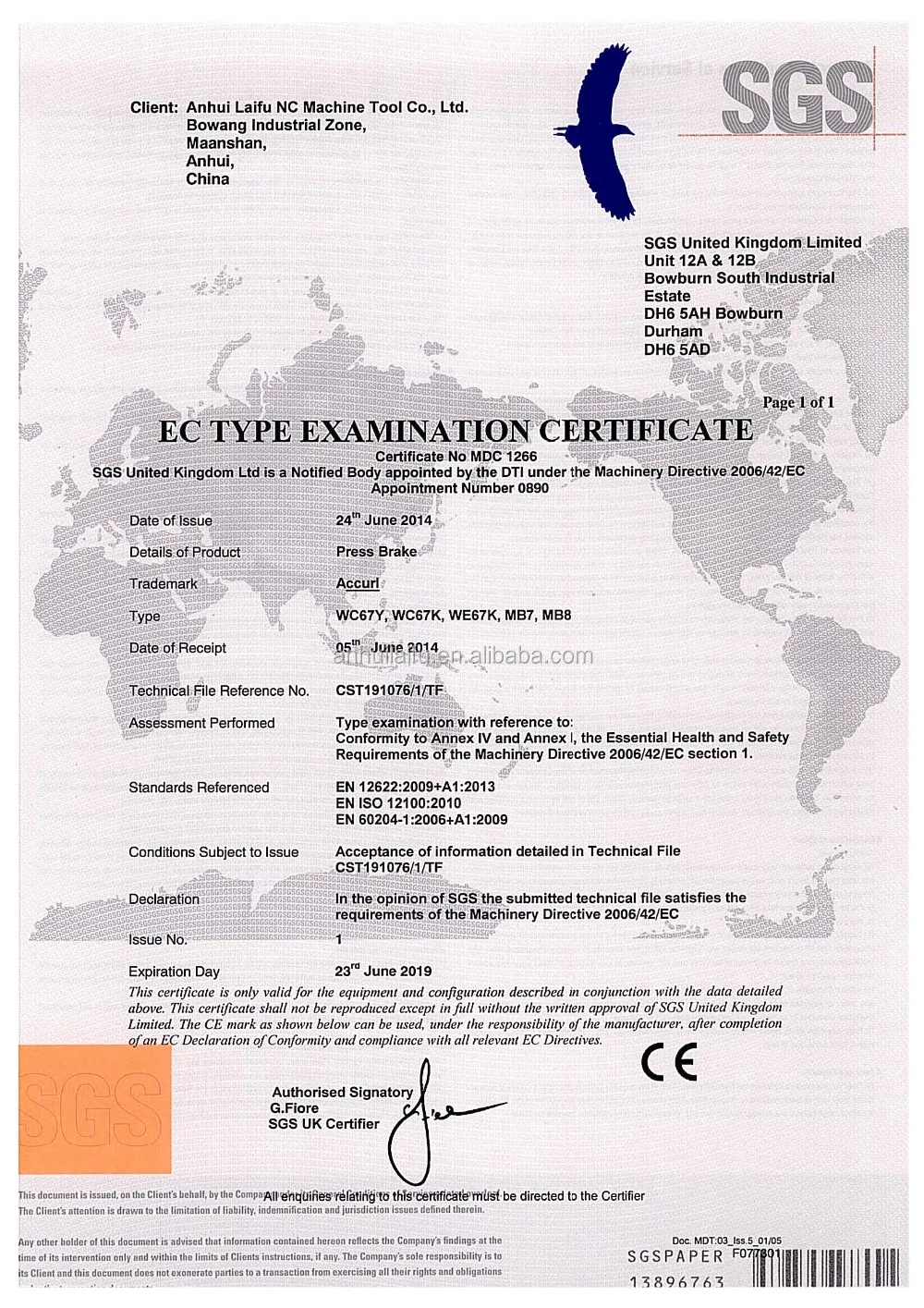

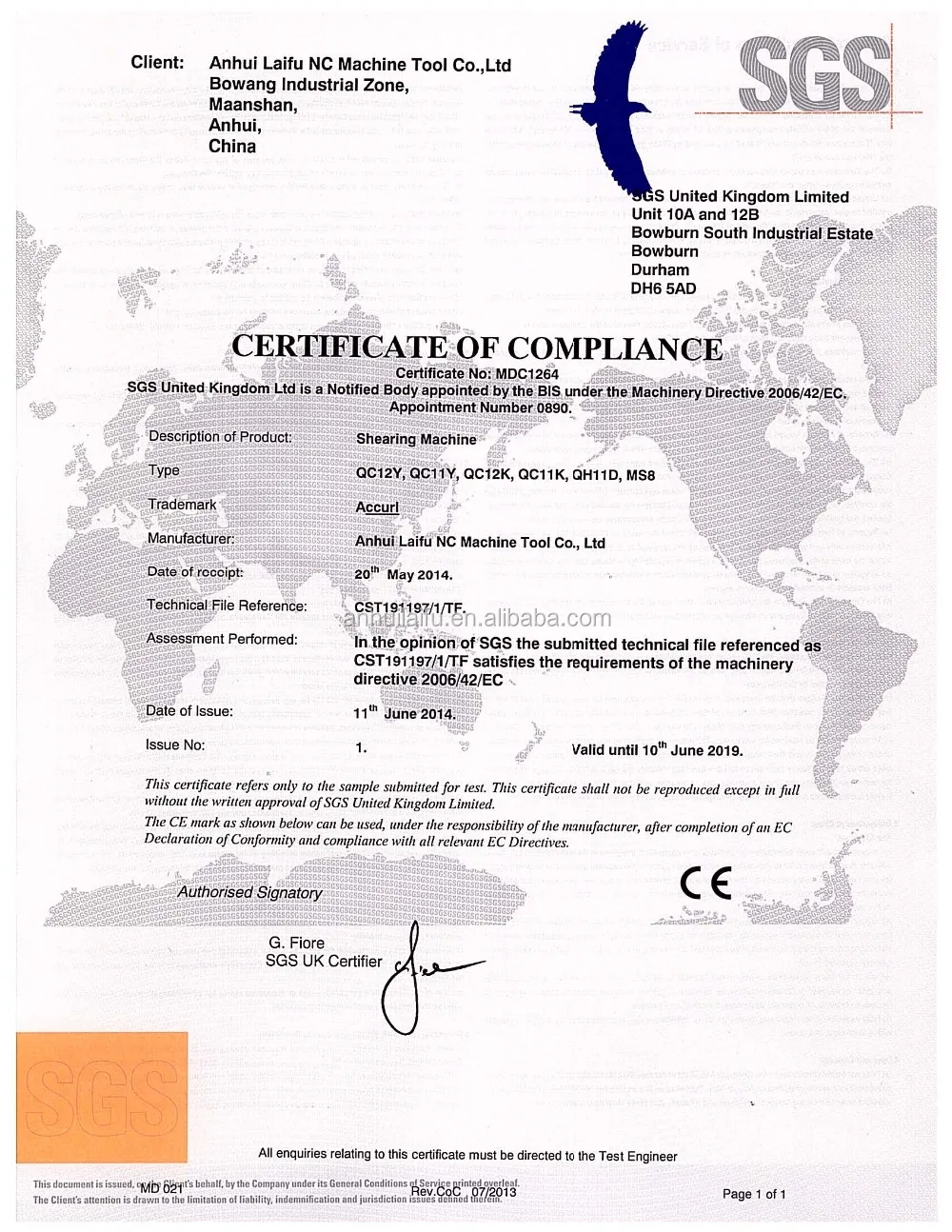

Certifications
Detailed Images

Machine Parts

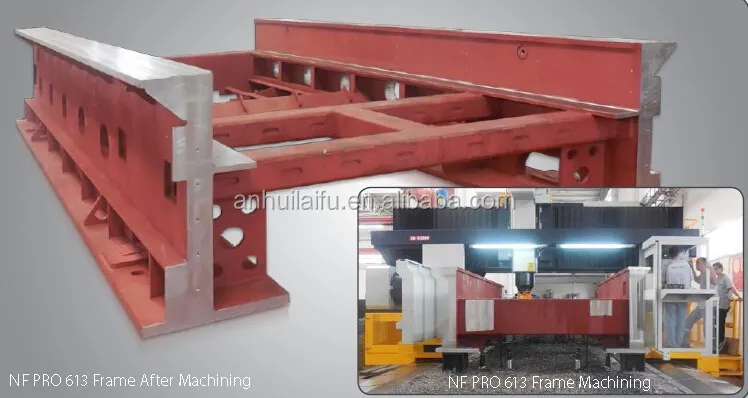

1.the steady gantry framework provides open worktable.
2.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
3.High quality guarantees its durability and easier maintenance

Conveyor System

A special hard steel construction conveyor system, standard on our machines, is located under the workspace. The conveyor removes slag and small parts during the cutting process. The operator can choose the movement direction of the conveyor.

Machine Parts

The Wittenstein high precision helical gear rack and pinion system uses precision planetary and servo-worm reducers. Our special design eliminates any noticeable backlash variance. The rack used in these systems is also hardened & precision ground.

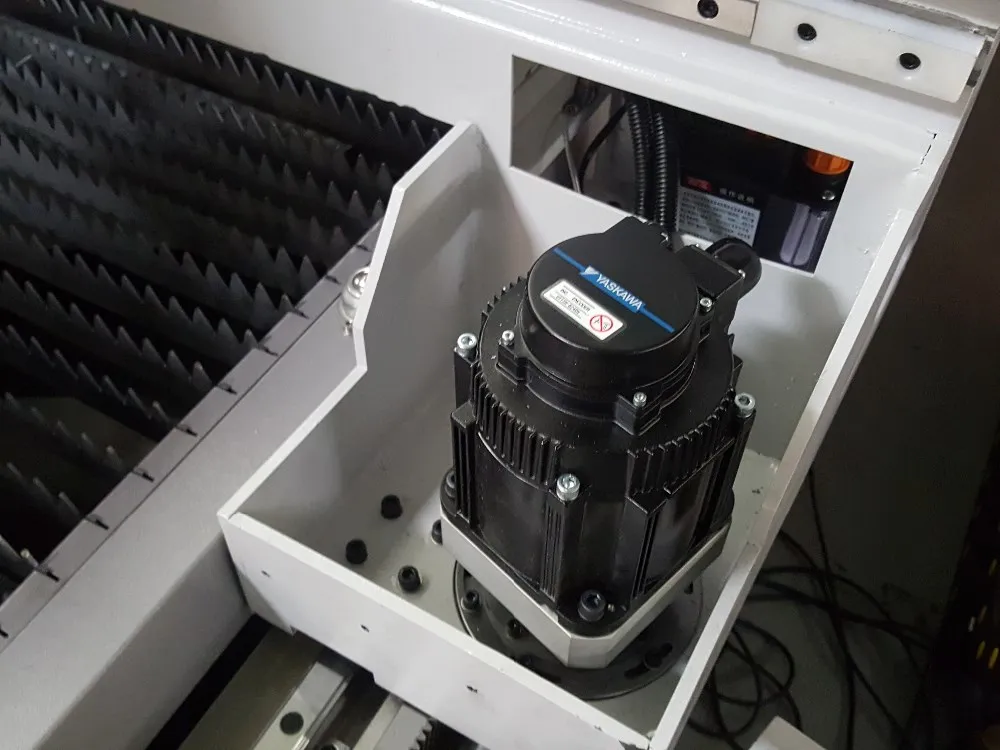

SINGLE CABLE SERVO MOTOR TECHNOLOGY

1.Accurl has 4 servo motors for all axial movements.These are the latest technology single cable servomotors.

2.Power and process data are transmitted in onestandard motor cable, significantly reducing costs.

3.This technology also gives more accurate positioningand more geometrically accurate parts.

Standard Euipment

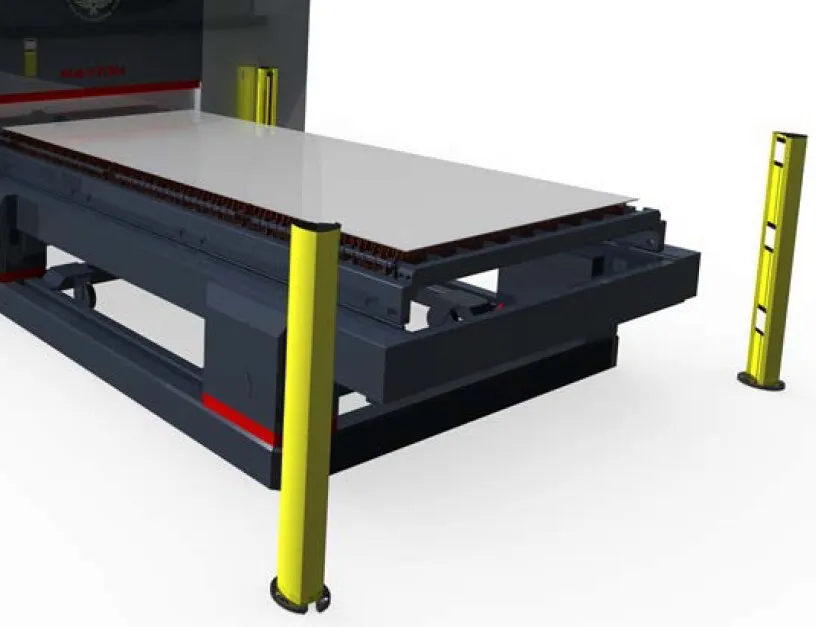

CUTTING TABLE

The dual cutting table system is designed for in-creasing your workflow and reducing time spent on placing and removing materials. Cutting table exchange speed can be adjusted according to thickness of materials.

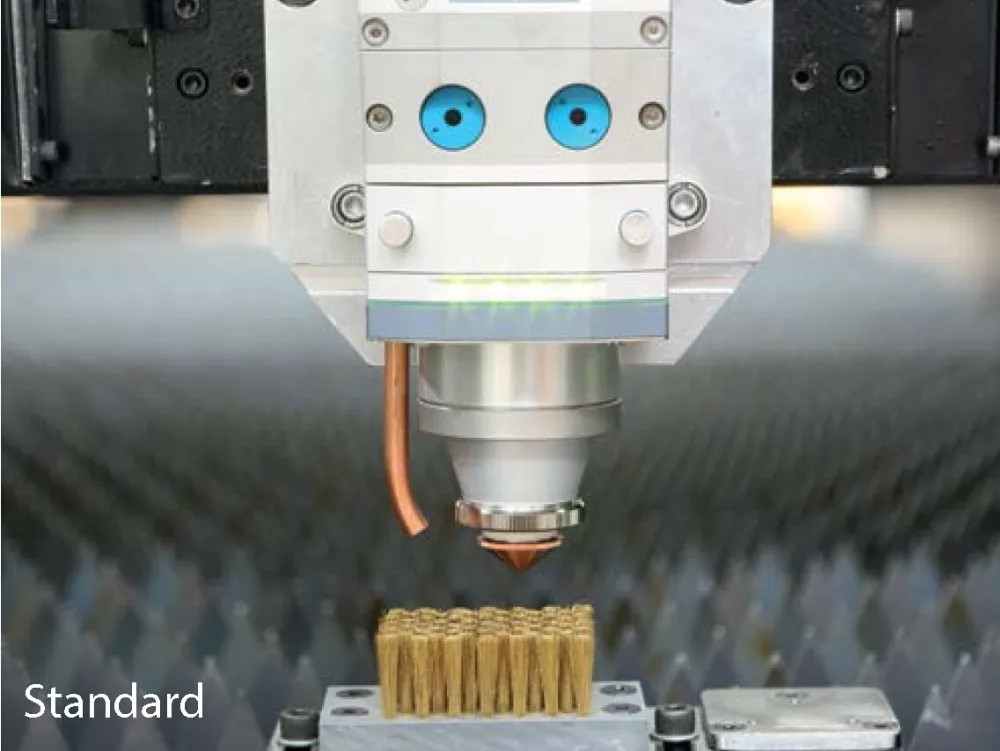

NOZZLE CLEANER

Keeping your machine cutting quickly and cleanly is important. Our nozzle cleaner helps improve the life of your nozzles so your cuts stay consistent, longer.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Our Service

Pre-Sales Service

* Technical solution.
* Online video authentication machine work.
* Cutting samples provided by DHL.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
